1:5 and 1:4.2 Speed-Increasing Contra-Angles

Fibre-optic speed-increasing contra-angles in 1:5 (up to 200,000 rpm) and 1:4.2, including 45° and surgical versions.

  • 1:5 · 1:4.2 Speed-increasing ratios
  • 200,000 rpm Max. speed (202C9A, 202C9C)
  • Fibre optic Light (5 of 6 models)
  • ø 1.6 mm FG Bur type (202C9A, 202C9C)

Available in

Ratio

  • 1:5
  • 1:4.2

Finish (202C9A)

  • Red ring
  • Brown

Model

  • 202C9
  • 202C9A
  • 202C9C
  • 202C9G
  • 202C9H
  • 202C9J

Overview

A speed-increasing contra-angle turns the bur faster than the motor: five times faster at 1:5 and 4.2 times faster at 1:4.2. Bestdent lists four 1:5 models and two 1:4.2 models; all except 202C9 are listed with fibre-optic light.

1:5 models

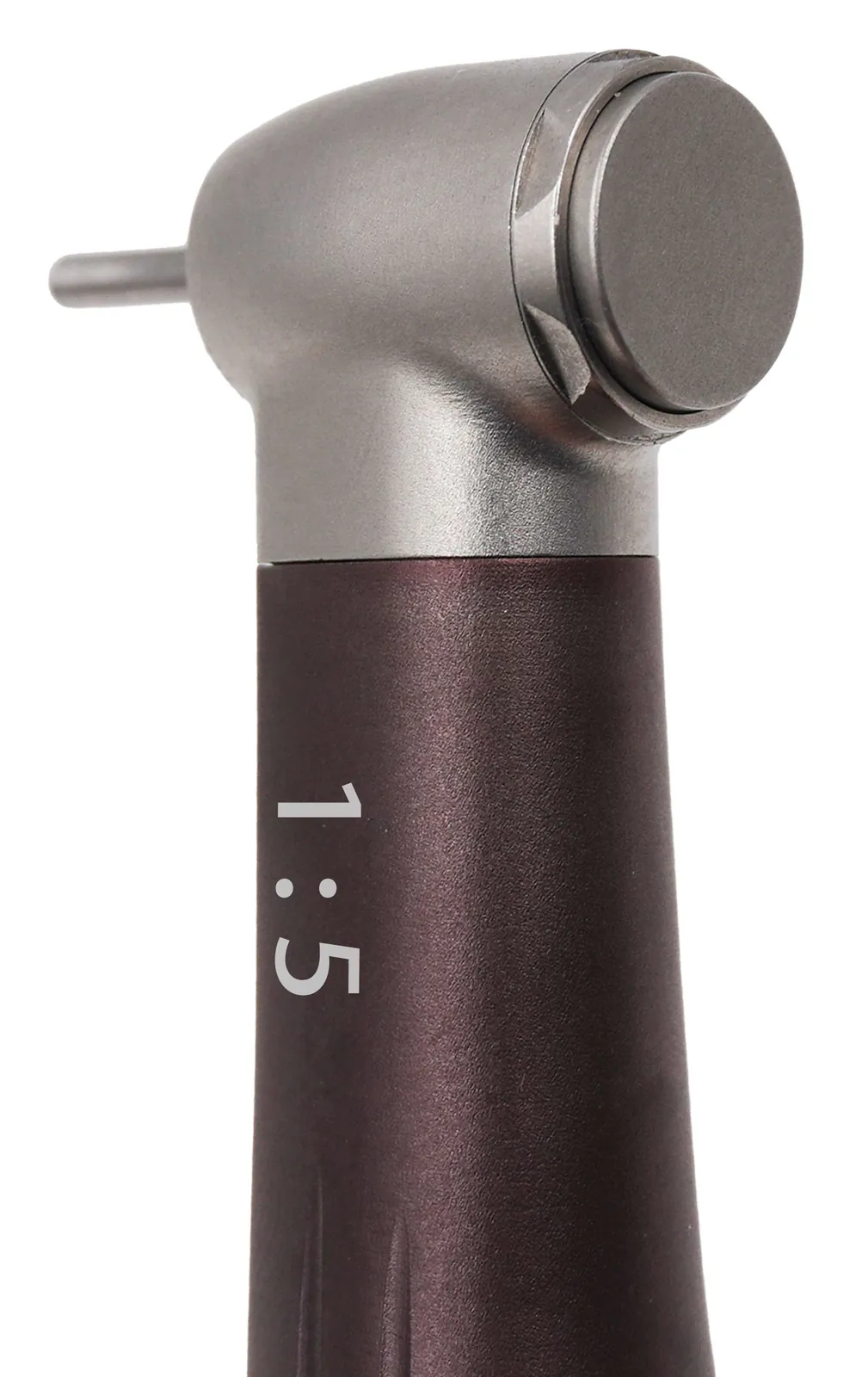

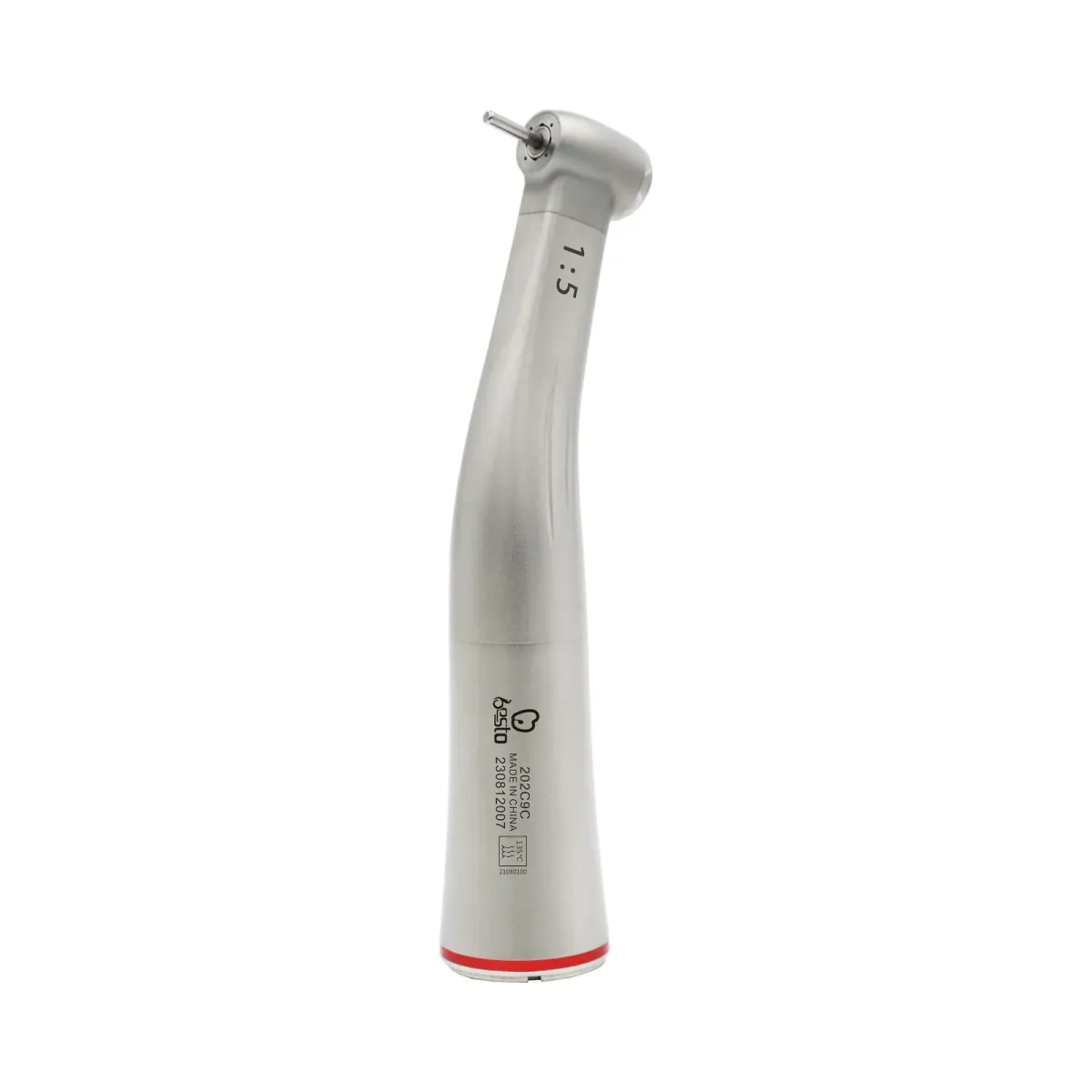

202C9C and the red-ring 202C9A share one specification: 77 g, a ø 10 × 14.5 mm head, up to 200,000 rpm, ø 1.6 mm FG burs, a 4-port internal spray, push-button chuck and ceramic bearings. Bestdent also lists a brown "new design" version under 202C9A, for E-type electric motors. 202C9H is a further fibre-optic 1:5 model, and 202C9 is listed with a push-button chuck and ceramic bearings.

1:4.2 models

202C9G has a 45° head. 202C9J is a surgical version with internal and external cooling and a detachable head; it weighs 150 g and has a ø 9.6 × 13.5 mm head.

Specifications

Ratio1:5 speed-increasing (202C9, 202C9A, 202C9C, 202C9H); 1:4.2 speed-increasing (202C9G, 202C9J)
LightFibre optic (202C9A, 202C9C, 202C9G, 202C9H, 202C9J)
Max. speed200,000 rpm (202C9A red ring, 202C9C)
Bur typeø 1.6 mm FG (202C9A red ring, 202C9C)
Head sizeø 10 × 14.5 mm (202C9A red ring, 202C9C); ø 9.6 × 13.5 mm (202C9J)
Head angle45° (202C9G)
Weight77 g (202C9A red ring, 202C9C); 150 g (202C9J)
Water spray4-port internal (202C9A red ring, 202C9C); internal and external (202C9J)
ChuckPush-button (202C9, 202C9A red ring, 202C9C)
BearingsCeramic (202C9, 202C9A red ring, 202C9C)
Detachable headYes (202C9J)
Motor couplingE-type electric motor (202C9A brown)
MaterialStainless steel (202C9A red ring, 202C9C, 202C9J)
Device classClass II

About the manufacturer

Bestdent

Bestdent Foshan Medical Equipment Co., Ltd. is based in Foshan, Guangdong, China. It makes dental handpieces and motors, intraoral scanners, and diamond burs and discs for dental clinics. Its products carry the BESTO brand name.

A & O Trust Trade is an agent for Bestdent.
