Dust extractor for dental milling machines with automatic pulse filter cleaning and a machine link.

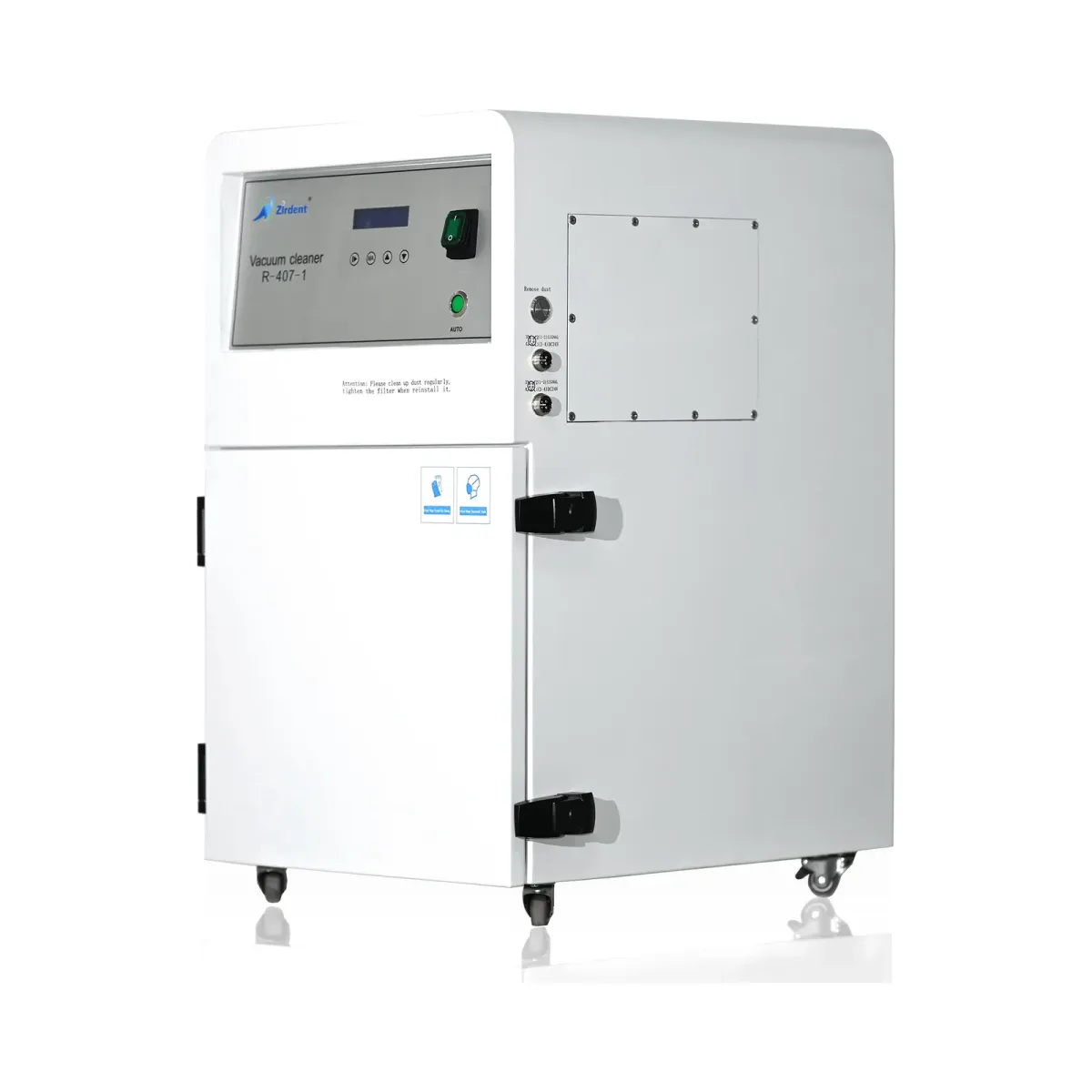

The R-407-1 is a dust extraction unit for dental milling machines, used to collect zirconia dust during milling. It can be linked to the milling machine, and an automatic pulse system cleans the filter.
Measured at 50 mm, Zirdent gives a negative pressure of 9.6 kPa and an airflow of 4.82 m³ per minute. The unit draws 1200 W and runs at under 65 dB.
The R-407-1 measures 350 × 430 × 710 mm (L × W × H) and weighs 39 kg. It runs on 220 V AC, 50/60 Hz, at 5.5 A.
| Model | R-407-1 |
|---|---|
| Negative pressure | 9.6 kPa (at 50 mm) |
| Airflow | 4.82 m³/min (at 50 mm) |
| Noise | < 65 dB |
| Filter cleaning | Automatic pulse cleaning |
| Integration | Can be linked to the milling machine |
| Power | 1200 W |
| Voltage | 220 V AC |
| Current | 5.5 A |
| Frequency | 50/60 Hz |
| Dimensions (L × W × H) | 350 × 430 × 710 mm |
| Weight | 39 kg |
About the manufacturer
Zirdent Biotechnology Co., Ltd. makes dental zirconia in Changsha, Hunan, China. Its range covers multilayer, pre-shaded and white zirconia discs, PMMA, wax and PEEK discs, colouring liquids, milling and polishing tools, and laboratory equipment: milling machines, sintering, press and porcelain furnaces, scanners and a dust extractor.
A & O Trust Trade is an agent for Zirdent.
