Zirdent CAD/CAM Milling Burs

Diamond-coated (DC) and DLC-coated milling burs, 0.3–2.5 mm, in versions for eight milling systems.

  • 0.3–2.5 mm Tool diameters
  • 8 Milling systems
  • DC / DLC Coatings

Available in

Coating

  • DC
  • DLC

Tool diameter

  • 0.3 mm
  • 0.5 mm
  • 0.6 mm
  • 1.0 mm
  • 1.5 mm
  • 2.0 mm
  • 2.5 mm

Shank diameter

  • 3.0 mm
  • 4.0 mm
  • 6.0 mm

Overview

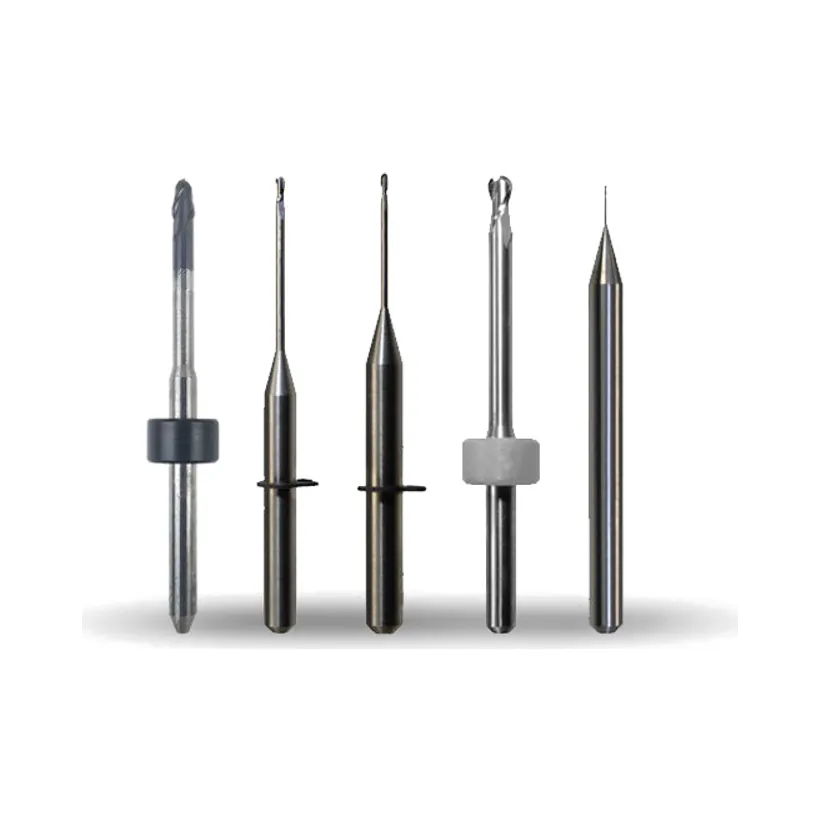

Zirdent's CAD/CAM milling burs are replacement tools for dental milling machines. Each version is made to the shank diameter and overall length of one milling system, and Zirdent lists versions for eight systems.

Coatings

Every version is offered with two coatings: DC (diamond-coated) and DLC (diamond-like coating).

Sizes

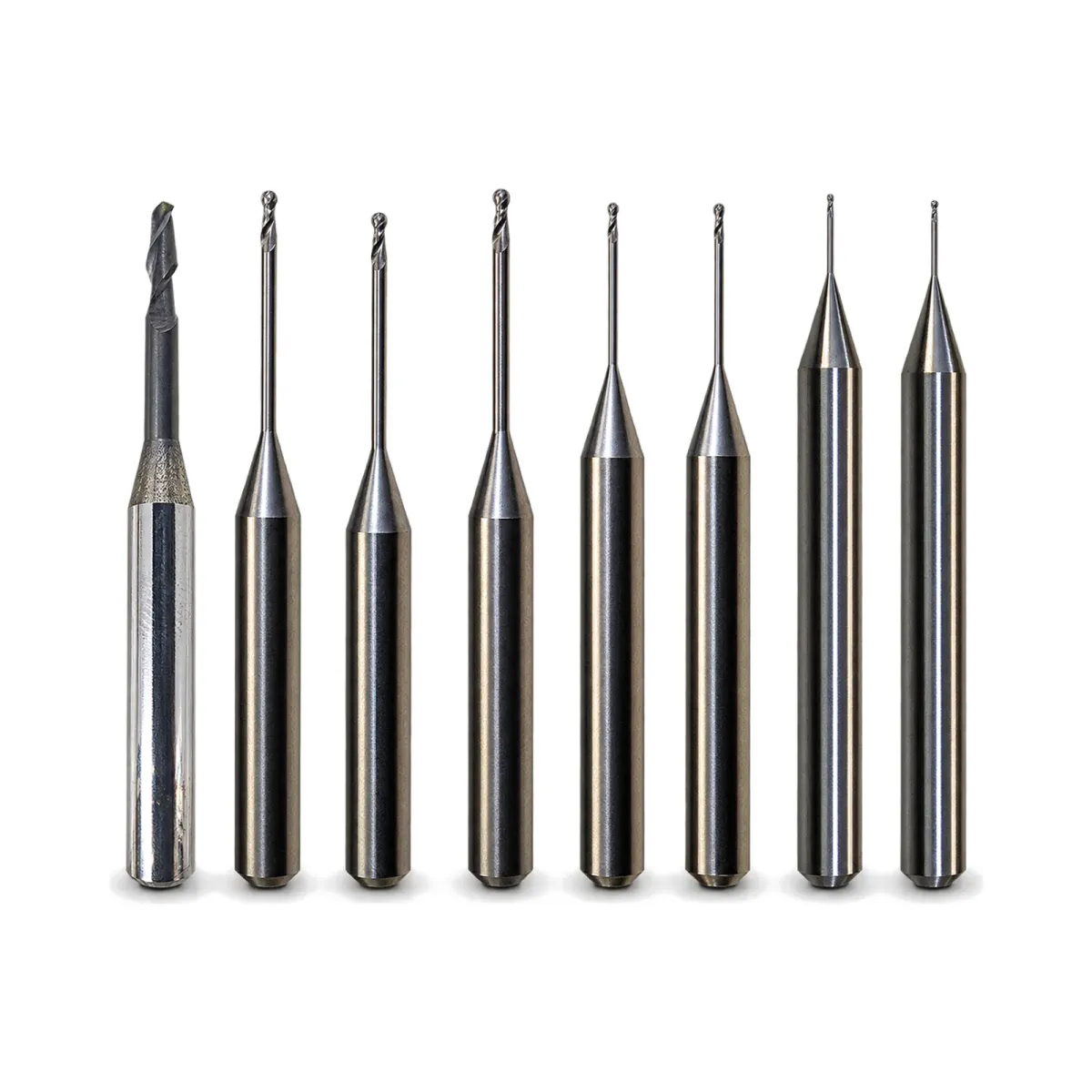

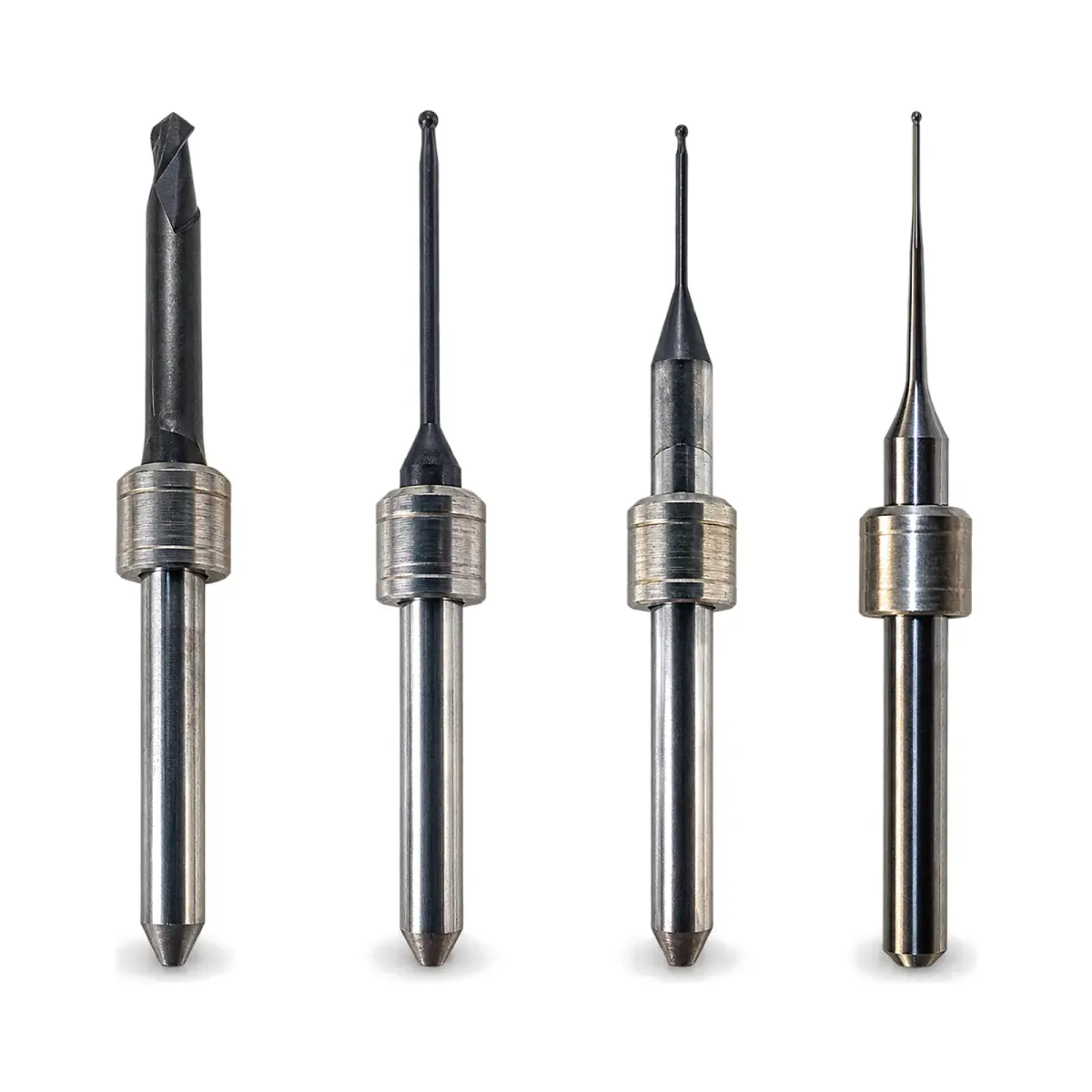

Tool diameters run from 0.3 mm to 2.5 mm, with the exact set depending on the system. Shanks are 3.0, 4.0 or 6.0 mm, and overall lengths range from 35 mm to 50 mm.

Materials

Zirdent names zirconia, PMMA, PEEK and wax as materials for its milling burs.

Specifications

CoatingDC (diamond-coated) or DLC (diamond-like coating)
Tool diameters0.3–2.5 mm, depending on system
Shank diameters3.0 mm, 4.0 mm or 6.0 mm, depending on system
Overall length35–50 mm, depending on system
CompatibilityVersions for eight dental CAD/CAM milling systems

Indications

  • Milling zirconia
  • Milling PMMA
  • Milling PEEK
  • Milling wax
