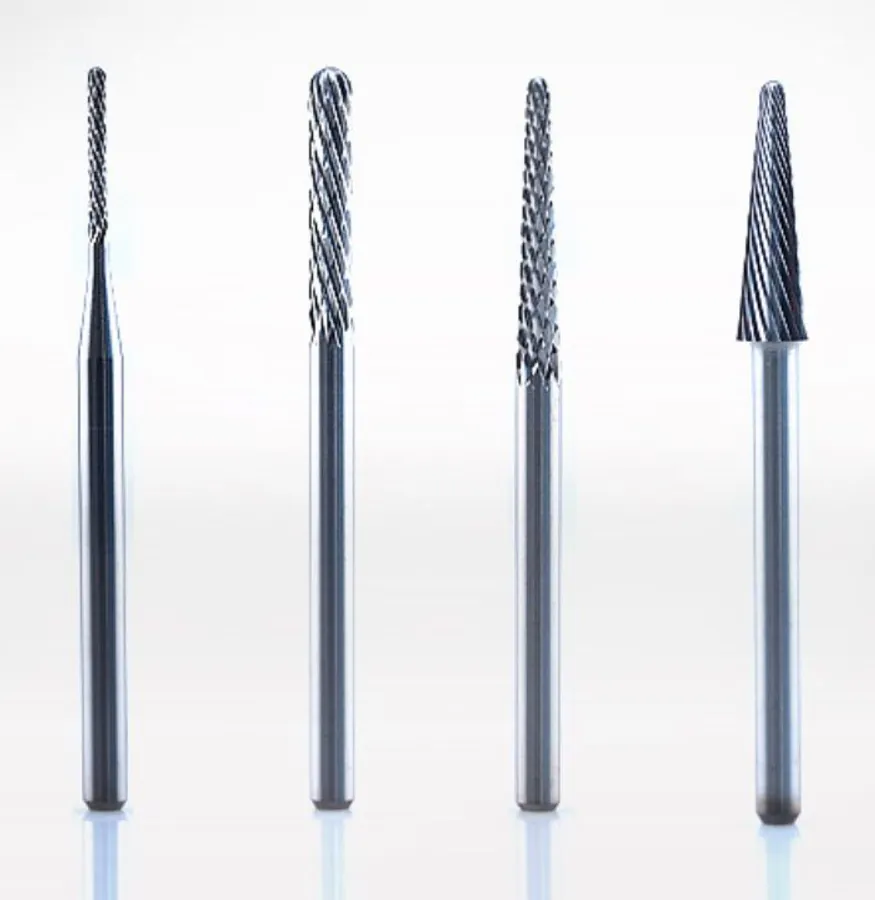

Tungsten Carbide Milling Burs

Tungsten carbide milling burs in three cuts and six sizes each, for precious and non-precious metals and titanium.

  • 3 Cuts: ISO 190, 220, 135
  • 0°–6° Angles
  • 8–15 mm Lengths (L)

Available in

Cut

  • ISO 190 cross-cut standard
  • ISO 220 cross-cut coarse
  • ISO 135 plain cut fine

Angle

  • 0°
  • 2°
  • 4°
  • 6°

Overview

Milling burs made of tungsten carbide. Sigmadent's catalogue says they cut precious and non-precious metals and titanium, and names trimming the shoulder on implant work as their main application.

Cuts

Three cuts: standard cross-cut (ISO 190), coarse cross-cut (ISO 220) and fine plain cut (ISO 135).

Sizes

Each cut comes in the same six sizes: three at 0° (size 1.0, 1.5 and 2.3, length 8, 10 and 15 mm) and three at 2°, 4° and 6° (size 2.3, 3.1 and 4.0, length 13 mm).

Ordering

Order numbers run 5401101–5401106 (ISO 190), 5401201–5401206 (ISO 220) and 5401301–5401306 (ISO 135). The catalogue does not give speeds, pack sizes or the handpiece or milling unit, so ask us before ordering.

Specifications

MaterialTungsten carbide
CutsISO 190 cross-cut standard; ISO 220 cross-cut coarse; ISO 135 plain cut fine
Angles0°, 2°, 4° and 6°
Size1.0, 1.5 and 2.3 at 0°; 2.3, 3.1 and 4.0 at 2°, 4° and 6°
Length (L)8, 10 and 15 mm at 0°; 13 mm at 2°, 4° and 6°
Materials workedPrecious and non-precious metals, titanium

Indications

  • Milling precious and non-precious metals
  • Milling titanium
  • Trimming shoulders on implant work
