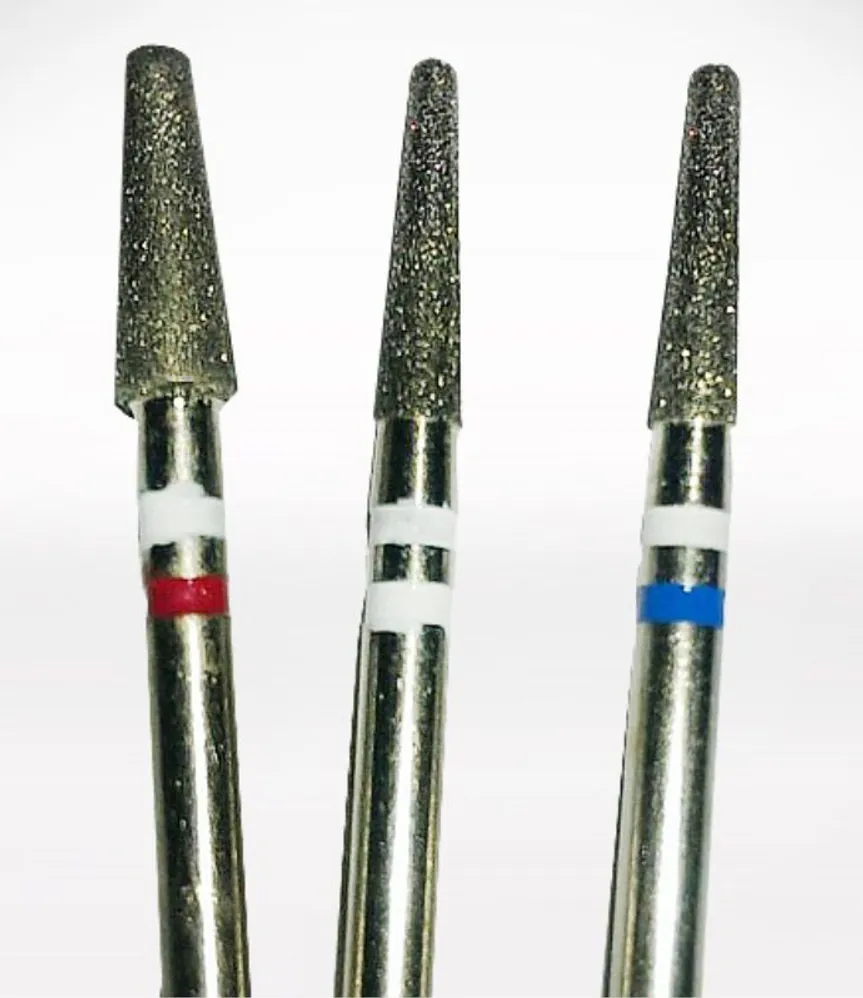

Zirconia Burs, Diamill Zircon

Burs for zirconia in three series, 0°, 1° and 2°, as six-piece sets or as single burs 01–05.

  • 0° · 1° · 2° Series
  • 6 Burs per set
  • ø 1.8 / 2.3 mm Head diameters

Available in

Series

  • 0°
  • 1°
  • 2°

Pack

  • Set of 6
  • Single 01
  • Single 02
  • Single 03
  • Single 04
  • Single 05

Overview

Burs for working zirconia, listed in Sigmadent's catalogue as zirconia tools in the Diamill zircon range. There are three series, marked 0°, 1° and 2°.

Sets and singles

Each series comes as a six-piece set (DMZ Set 0, DMZ Set 1 and DMZ Set 2) or as single burs numbered 01 to 05.

Sizes

The 0° burs are 10.5 mm long (L) with a 1.8 mm diameter and ISO shape 142. The 1° and 2° burs are 10.0 mm long with a 2.3 mm diameter and ISO shape 199.

Ordering

The catalogue does not give the shank, the abrasive or a speed with its unit, so ask us before ordering.

Specifications

ForZirconia
Series0°, 1° and 2°
0° seriesL 10.5 mm, ø 1.8 mm, ISO shape 142
1° and 2° seriesL 10.0 mm, ø 2.3 mm, ISO shape 199
SetsDMZ Set 0, DMZ Set 1, DMZ Set 2: 6 burs each
Single burs01–05 DMZ 0, 01–05 DMZ 1, 01–05 DMZ 2

Indications

  • Working zirconia
