Sintered Diamond Burs & Discs

Sintered-diamond burs in five colour-ringed grits and 47 sizes, plus five sintered diamond discs of 16–22 mm.

  • 5 Grits, colour-ringed
  • 47 Bur sizes
  • 16–22 mm Disc diameters
  • 1 Per pack

Available in

Grit

  • SF (yellow)
  • F (red)
  • G (blue)
  • SG (green)
  • EG (black)

Head diameter

  • 1.6 mm
  • 1.8 mm
  • 2.3 mm
  • 2.5 mm
  • 2.7 mm
  • 3.0 mm
  • 3.1 mm
  • 3.5 mm
  • 4.7 mm
  • 5.0 mm
  • 6.0 mm
  • 8.0 mm

Disc

  • 5412F 200
  • 5412 200
  • 5412 220
  • 5814 220
  • 5808 160

Overview

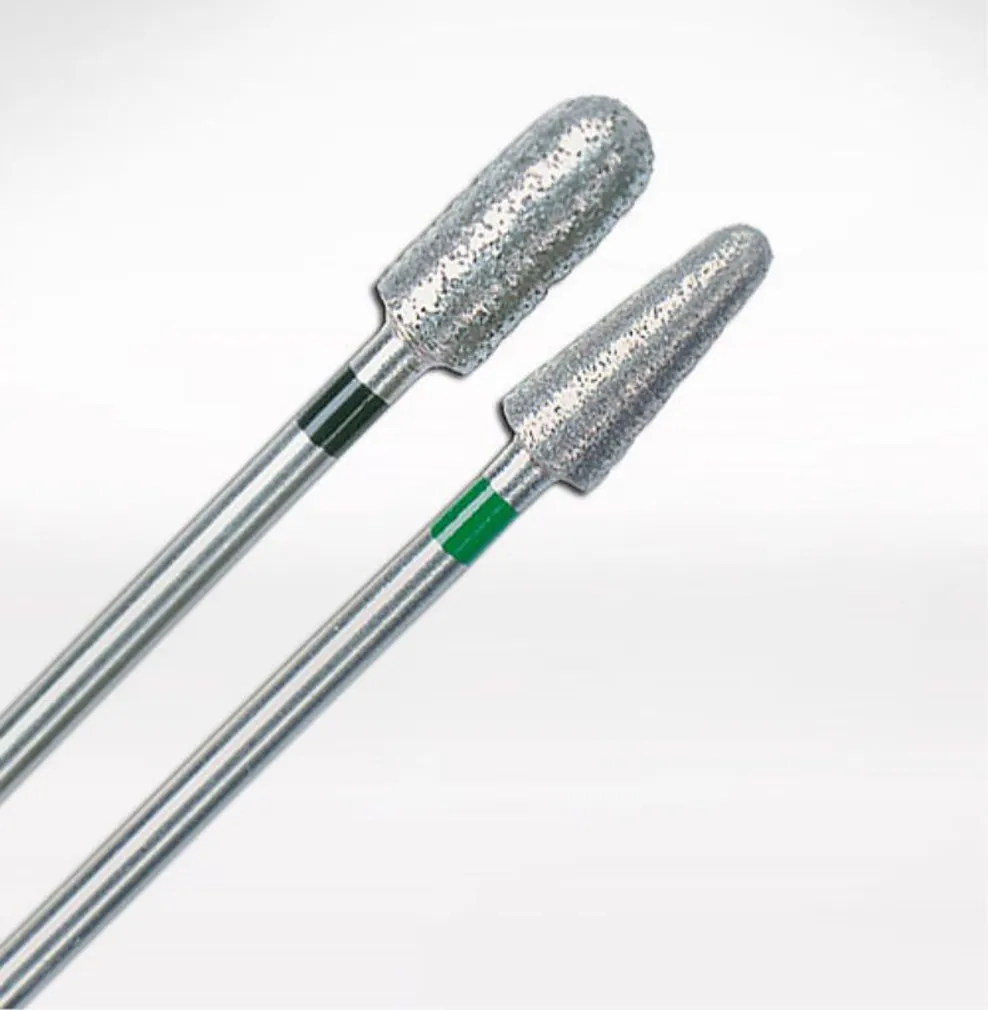

Burs and discs with a sintered-diamond working part, listed by Sigmadent in five grits. Each grit has its own ring colour: SF yellow, F red, G blue, SG green and EG black. The catalogue does not explain the letters.

Burs

47 sizes in 24 ISO shapes, with head diameters from 1.6 mm to 8.0 mm and lengths (L) from 0.6 mm to 15 mm.

Discs

Five sintered diamond discs: two of 20 mm and one of 22 mm in grit F, and one of 22 mm and one of 16 mm in grit G.

Ordering

Every item is sold singly. The catalogue does not give the shank type, uses or speeds, so tell us the order number, or the shape, size and grit, and we will confirm.

Specifications

AbrasiveSintered diamond
GritsSF (yellow ring), F (red), G (blue), SG (green), EG (black)
Burs47 sizes in 24 ISO shapes
Head diameters1.6–8.0 mm
Length (L)0.6–15.0 mm
Discs5, ø 16, 20 and 22 mm, grits F and G
Pack1 piece
