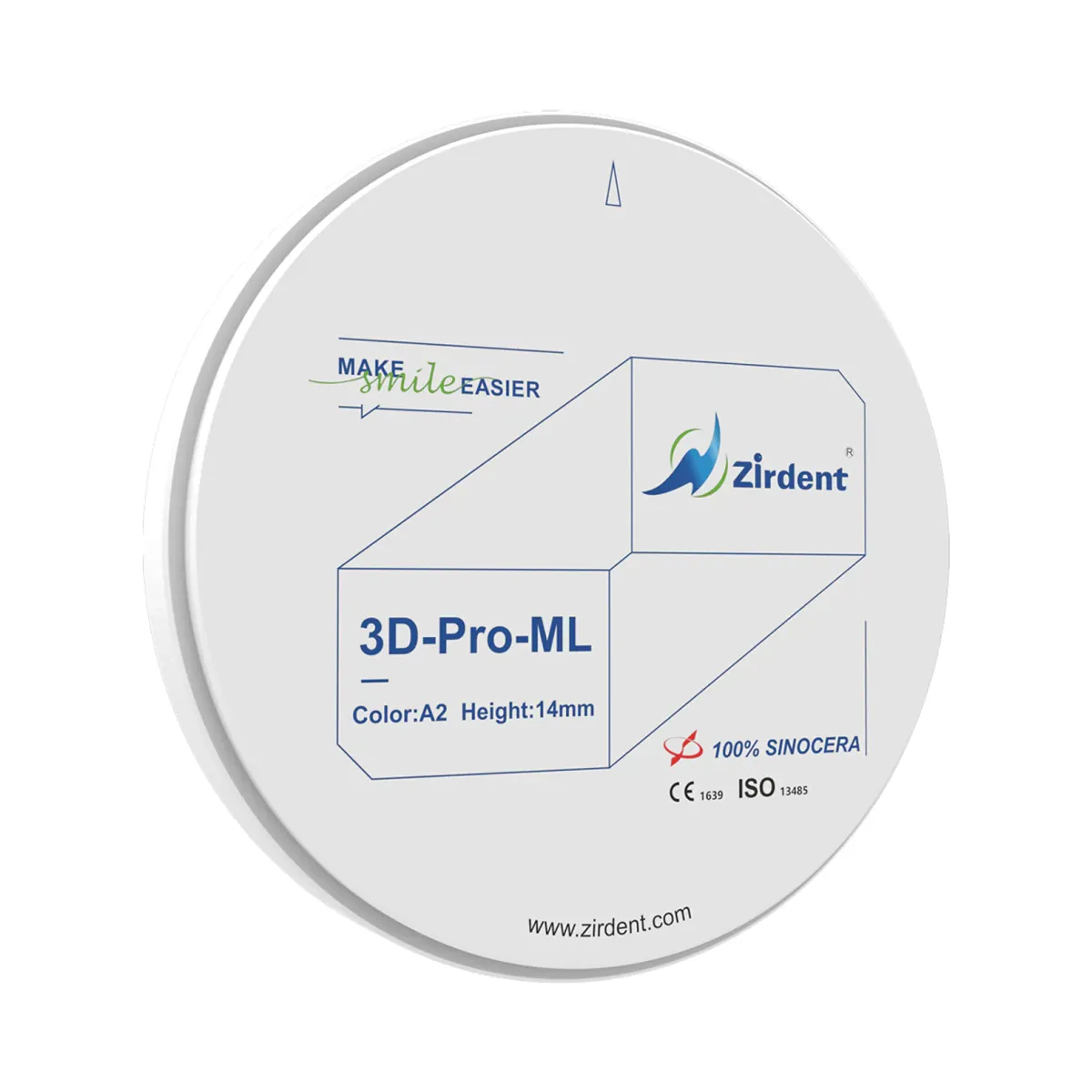

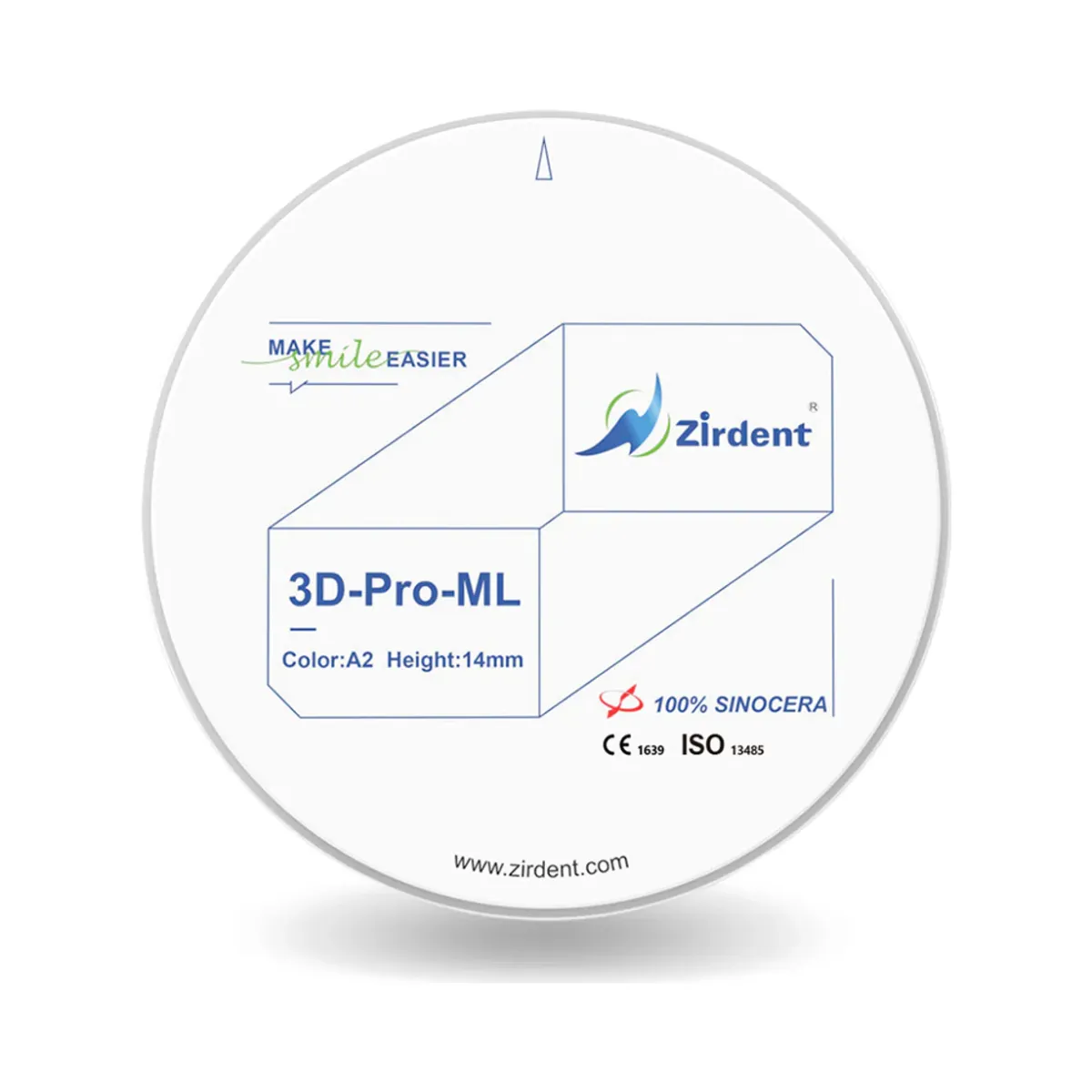

Zirdent 3D Pro ML Multilayer Zirconia

Multilayer zirconia graded in shade, translucency and strength, from veneers to full-arch bridges.

  • 800–1200 MPa Flexural strength (graded)
  • 42–49% Translucency (graded)
  • 20 Shades
  • 0.5 mm Min. wall thickness

Available in

Disc format

  • 98 mm
  • 95 mm
  • 92 × 75 mm

Thickness

  • 10 mm
  • 12 mm
  • 14 mm
  • 16 mm
  • 18 mm
  • 20 mm
  • 22 mm
  • 25 mm

Shade

  • A1
  • A2
  • A3
  • A3.5
  • A4
  • B1
  • B2
  • B3
  • B4
  • C1
  • C2
  • C3
  • C4
  • D2
  • D3
  • D4
  • BL1
  • BL2
  • BL3
  • BL4

Overview

3D Pro ML is Zirdent's graded multilayer zirconia disc. Shade, translucency and strength change gradually through the disc: the cervical zone is 3Y-TZP tetragonal zirconia and the incisal zone is 5Y-TZP cubic zirconia. One blank therefore spans 800–1200 MPa flexural strength and 42–49% translucency, and Zirdent states that the transitions leave no visible lines.

One disc for many indications

Zirdent lists the disc for veneers, inlays and onlays, copings, anterior and posterior crowns, 3-unit and full-arch bridges, implant crowns and bridges, and abutments. The recommended minimum wall thickness for veneers and anterior crowns is 0.5 mm.

Shades and formats

The disc comes in 16 VITA® shades (A1–D4) and four bleach shades (BL1–BL4), as 98 mm, 95 mm and 92 × 75 mm formats from 10 to 25 mm thick. It is made from Sinocera® zirconia powder.

Specifications

Flexural strength800–1200 MPa (graded)
Translucency42–49% (graded)
Microstructure3Y-TZP tetragonal (cervical) to 5Y-TZP cubic (incisal)
GradationShade, translucency and strength
Minimum wall thickness0.5 mm (veneers and anterior crowns)
Shade system16 VITA® shades + 4 bleach shades
Raw material100% Sinocera® zirconia powder
Quality controlMore than 24 quality-control methods

Indications

  • Veneers
  • Inlays and onlays
  • Copings
  • Anterior crowns
  • Posterior crowns
  • Implant crowns and bridges
  • 3-unit bridges
  • Full-arch bridges
  • Abutments

About the manufacturer

Zirdent

Zirdent Biotechnology Co., Ltd. makes dental zirconia in Changsha, Hunan, China. Its range covers multilayer, pre-shaded and white zirconia discs, PMMA, wax and PEEK discs, colouring liquids, milling and polishing tools, and laboratory equipment: milling machines, sintering, press and porcelain furnaces, scanners and a dust extractor.

A & O Trust Trade is an agent for Zirdent.
